Palletizer System Palletizer Machine System With Parallel Manipulator

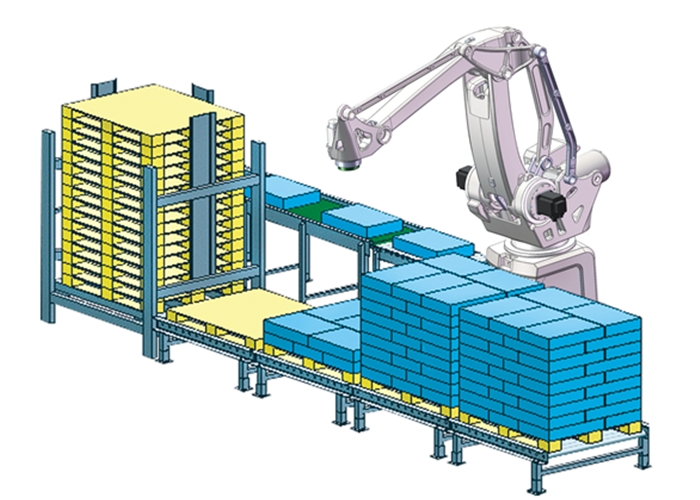

System components: automatic tray, tray conveyor line, platform, palletizing robot
Matching handle: bag handle, barrel handle, sucker handle, box handle
Mechanical character
1.New design.
2.High speed can satisfy harsh production.
3.Products are used in the field of handling palletizing.
4.Fully open independent system to support a variety of applications.
5.Networked control system, rich external interface, and expansion capabilities.
Features
| 1.Cost-effective, high quality, and cheap spare parts
|
| 2.support visual, power, and other intelligent sensor information
|
| 3.Active and timely localization of customer service, avoid your worries |
| 4.IASUN Robot Virtual Work Station, Support CAD model reconstruction and CDA model-based robot free teaching operations.
|
General purpose industrial robots
| structure type | Four-axis palletizing | Four-axis palletizing |
| load capacity | 160Kg | 300Kg |
| The scope of work(Horizon) | 3050mm | 3050mm |
| Repeatability | ±0.5mm | ±0.5mm |
| Degrees of freedom | 4 | 4 |
| Maximum motion range of per axis | S-axis(turn) | ±185° | ±185° |
| L-axis(Lower arm) | +45°, —85° | +45°, —85° |
| U-axis(Upper arm) | +20°, —120° | +20°, —120° |
| 4 axis | ±360° | ±360° |
| The maximum speed of per axis | S-axis(Turn) | 120°/s | 85°/s |
| | L-axis(Lower arm) | 120°/s | 90°/s |
| | U-axis(Upper arm) | 120°/s | 90°/s |
| | 4 axis | 300°/s | 190°/s |
| Body weight | 1900Kg |
| battery capacity | 5KVA |
| Protection grade(Wrist) | IP65 |
| Reserved signal line(1 axis → 3 axes) | 32 core, single core diameter 0.2mm² |
Company profile
Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
13 years of experience in product customization and practical industry application. Special program technical team with rapid response. Tailored products and solutions with high pertinence and applicability are delivered after the comprehensive planning and evaluation based on the customer’s actual production situation and usage.
Adopting well-known Japanese and German brand load cells. Key components such as hoppers, linear pans, waterproof cover are made by high-precision molds, which contributes to high consistency and interchange-ability. The circuit board design adopts the industrial-grade design scheme, the industrial-grade material, and the manufacturing technology from the chip selection to the PCB design and the protection. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.
Having a high-quality team with more than 30% professional technicians, which ensures our comprehensive capacity from R&D, manufacturing, marketing, installation, technical training to after-sales service for the complete automatic weighing packaging system.
|
|
